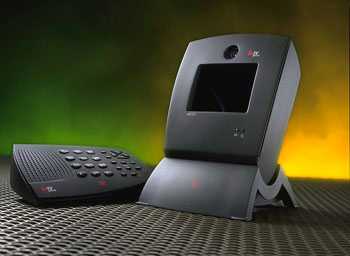

8x8's ViaTv Desktop Videophone combines with a touch-tone
videophone to provide a complete videophone solution that delivers full-color
video (up to 20 frames per second) and audio over standard telephone lines.
ViaTv's use of standard telephone lines allows it to be used anywhere a regular
telephone can be, with no additional or special wiring required. And because
it uses standard telephone lines, a video call costs exactly the same as
a regular local or long distance telephone call.
The VC150 integrates a full-color, 4" active matrix
liquid display (LCD), digital camera, high performance analog modem and 8x8
Video Communcation Processor into an elegant desktop enclosure. Features
include adjustable picture quality, size and frame speed, electronic pan
tilt, zoom, and snapshot.
Specifications
System(ITU-T Standard
H.324) |
-Signaling: H.245
-Channel Multiplexer: H.223 |
Resolution |
-CIF: 352x288 pixels
-QCIF: 176x144 pixels
-SQCIF: 128x96 pixels
-Frames/sec(SQCIF): 20fps |
Integrated
Camera |
-Type: 1/5" CCD
HiRes
-Ilumination(min): 35 lux@f1.9
-Focal Range: 752x480
-Horizontal filed of view(max): 48.9deg
-Auto exposure & white bal: 36.5deg |
Display |
-Type: Active Matrix LCD
-Size: 4.5" diagonal
-Resolution: 320x240
-Colors: 4.1 million |
Audio(ITU-T Standard
G.723.1) |
-Frequency Response: 50hz-3.4Khz
-Full duplex
-Automatic gain control
-Accoustic echo cancellation |
Network
Interface |
-POTS: RJ-11
-Transmission speed(max): 33.6Kbps
-Communication mode: Synchronous |
Electrical |
-Operating voltage: 12VDC
-Power consumption(max): 35 watts
-Operating voltage(AC): 110/220VAC
-Operating frequency(AC): 60/50Hz |
Dimensions |
-Height/width/depth(in):
19.2x6.3x7.8
-Height/width/depth(cm):23.5x16.2x20
-Weight: 1.25Kg (2.75 lbs) |
|
