TV-400 by Treudox Technology Corporation, is a
revolutionary color videophone system which provides simultameous video and
audio communication over the standard telephone lines (POTS) at the regular

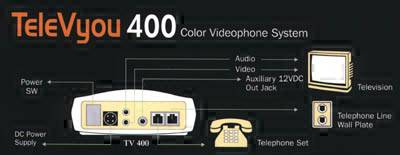

rate. The TV-400 combines with a TV and a touch-tone phone to provide color
video images of family, friends, and business assiciates around the world.
Its built-in surveillance function also allows remote monitoring of home,
business, health care and security use.
The TV-400 is designed to conform to the H.324 ITU
standard and is therefore compatible with any H.324 videophone. Features
include adjustable picture quality, size and frame speed, electronic pan
tilt, zoom, and snapshot.
Specifications
System(ITU-T Standard
H.324) |
-Signaling: H.245
-Channel Multiplexer: H.223 |
Resolution |
-CIF: 352x288 pixels
-QCIF: 176x144 pixels
-SQCIF: 128x96 pixels
-Frames/sec(SQCIF): 15fps |
Integrated
Camera |
-Type: 1/4" CCD
-Ilumination(min): 10 lux@f1.8
-Automatic Focus Range: 20.5" to infinity
-Aiming Angle: V +15deg/H +20deg
-Resolution: 752x480
-Horizontal Field of View: 61 degrees
-Auto exposure & white balance
-Artificial lighting flicker reduction |
Video output |
-Main monitor: Composite
-Format: PAL/NTSC |
Audio(ITU-T Standard
G.723.1) |
-Frequency Response: 50hz-3.4Khz
-Full duplex
-Automatic gain control
-Accoustic echo cancellation |
Audio input |
-Telephone receiver |
Audio output |
-Line level
-Telephone receiver |
Network
Interface |
-POTS: RJ-11
-Transmission speed(max): 33.6Kbps
-Communication mode: Synchronous |
Electrical |
-Operating voltage: 12VDC
-Power consumption(max): 18 watts
-Operating voltage(AC): 110/220VAC
-Operating frequency(AC): 60/50Hz |
Dimensions |
-Height/width/depth(in):3.38x6.2x7.63
-Height/width/depth(cm):8.65x15.9x19.5
-Weight: 0.9Kg (2 lbs) |
|
