8x8's Remote Surveillance Module allows anyone within reach of a touch-tone telephone to monitor any similary equiped location worldwide. It uses standard telephone lines to provide full-color motion video(up to 20 frames per second), making remote surveillance of business and property both practical and cost-effective for the first time.

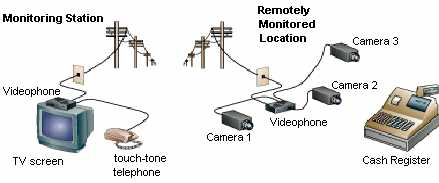

The Remote Surveillance Module connects to a standard telephone line and three camera inputs (or to a video switcher for additional cameras). Set the unit to auto-answer mode and no one in your store will ever know when they're under live surveillance. Using a second unit connected to a TV and a telephone line at home or in the office, a business owner can dial in and see anything that is in view of the remote cameras. The user can also switch between camera views, Zoom-in, pan/tilt and take a snapshot for positive ID.

Specifications

System(ITU-T Standard H.324)	-Signaling: H.245 -Channel Multiplexer: H.223
Resolution	-CIF: 352x288 pixels -QCIF: 176x144 pixels -SQCIF: 128x96 pixels -Frames/sec(SQCIF): 20fps
Video input	-Front Panel: Composite(RCA)/camera1 -Back Panel: Composite(RCA)/camera2 -Format: PAL/NTSC -Accessory Port: For camera 3
Video output	-Main monitor: Composite -Format: PAL/NTSC
Audio(ITU-T Standard G.723.1)	-Frequency Response: 50hz-3.4Khz -Full duplex -Automatic gain control -Accoustic echo cancellation
Audio input	-Front Panel: Line level (RCA) -Back Panel: Line level (RCA) Accessory Port: Line level(DIN connector)
Audio output	-Line level -Telephone receiver
Network Interface	-POTS: RJ-11 -Transmission speed(max): 33.6Kbps -Communication mode: Synchronous
Electrical	-Operating voltage: 12VDC -Power consumption(max): 35 watts -Operating voltage(AC): 110/220VAC -Operating frequency(AC): 60/50Hz
Dimensions	-Height/width/depth(in):1.63x9.5x4.85 -Height/width/depth(cm):4.17x24.3x12.4 -Weight: 1.1Kg (2.5 lbs)
